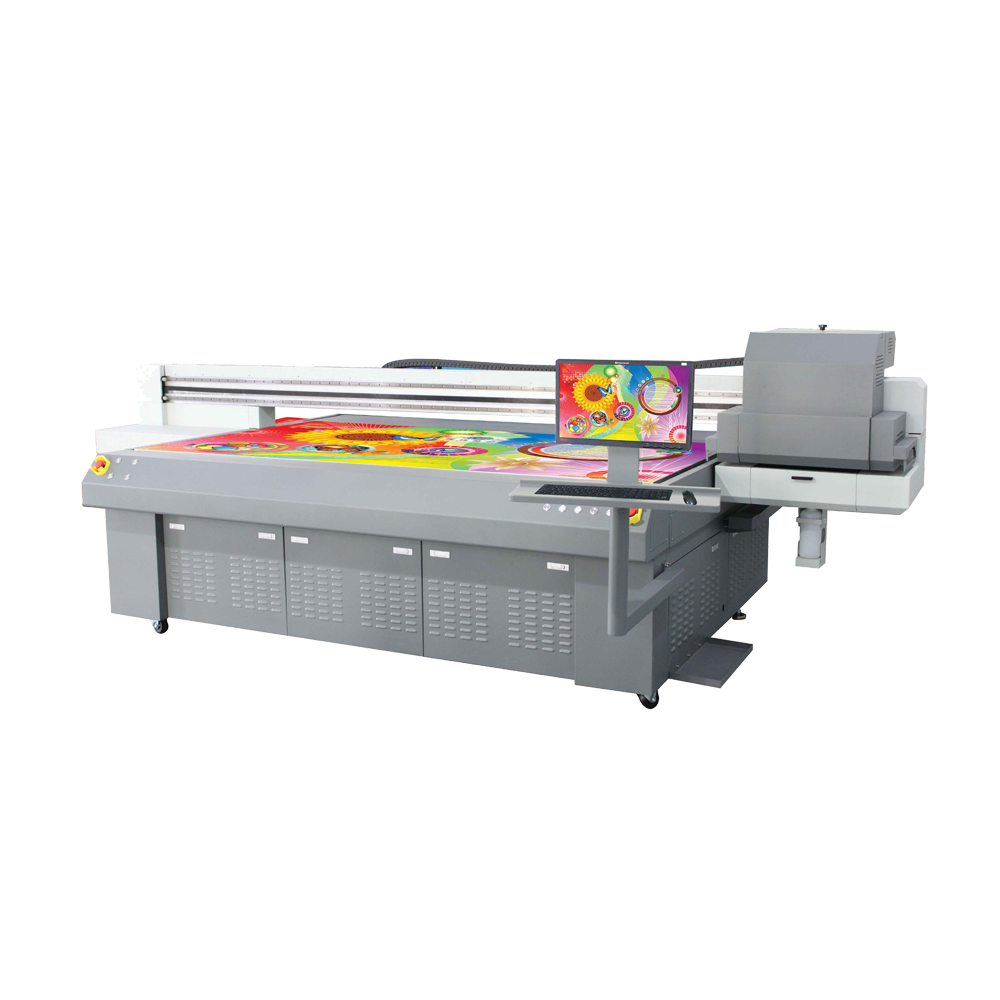

2.5m Galaxy UD-25C8AJW UV Inkjet Printer With Toshiba CE4M Head
Details:
Specification:
Model | UD-25C8AJW | |
Maximum Print Width | 2500mm x 1300mm | |
Maximum Media Width | 2500mm x 1300mm | |
Printhead | Toshiba CE4M | |
Number of printhead | 6+2 | |
Print Speed (m2/h) | Draft 6Pass | 24 |
Standard 8Pass | 10 | |
Quality 12Pass | 12 | |
High Quality 16Pass | 10 | |
Ink | Type | UV ink |
Color | 6+1 colors (C M Y K Lc Km + W) | |
Capacity | 1L per Main Tank of Each Color | |
Ink Supply System | Auto Ink Supply System | |
Media Type | PS Board, KT Board, PVC Foam Board, Acrylic, Aluminum, Glass, etc | |
Cleaning System | Auto Cleaning System | |
Print Interface | USB 3.0 | |
Printhead Height | 1 to 100 mm from Media | |
RIP Software | Maintop, Ultraprint, Photoprint, Onyx | |
Input Power | AC 220V/230V, 50Hz/60Hz | |
Printer Power | 4200W | |
Vacumm Power | 1500W | |
Machine Dimension / N.W | L3871 x W2165 x H1190mm / 525Kg | |
Package Dimension / G.W | L4150 x W2050 x H1550mm / 955Kg |
